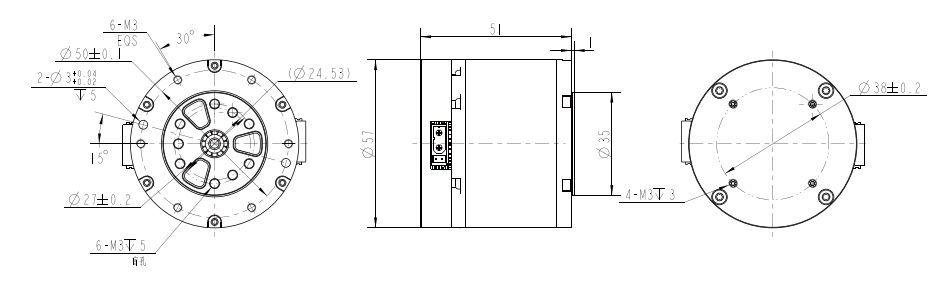

Standard service condition

1. Rated voltage: 48 VDC
2. Operating voltage range: 24V-60 VDC
3. Rated load (CW) : 5 N.m
4. Operation direction: CW/CCW from the direction of the exit shaft
5. Use posture: the direction of the exit axis is horizontal or vertical
6. Standard operating temperature: 25±5℃
7. Operating temperature range: -20 ~ 50℃
8. Standard operating humidity: 65%
9. Humidity range: 5 ~ 85%, no condensation
10. Storage temperature range: -30 ~ 70℃

11. Insulation Class: Class B

Electrical characteristic

1. No load speed: 315 rpm±10%
2. No-load current: 0.5 Arms
3. Rated load: 5 N.m
4. Rated load speed: 260rpm±10%
5. Rated load phase current (peak) : 4.7Apk±10%
6. Peak load: 14 N.m
7. Maximum load phase current (peak) : 15.5Apk±10%
8. Insulation resistance/stator winding: DC 500VAC, 100M Ohms
9. High voltage/stator and housing: 600 VAC, 1s, 2mA
10. Motor back potential: 9.5Vrms/kRPM±10%

11. Torque constant: 1.48N.m/Arms

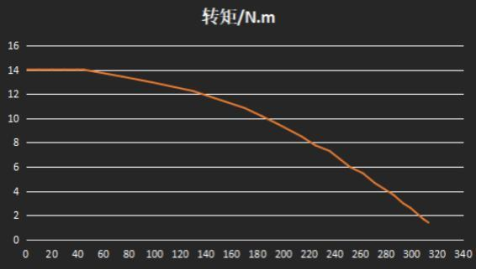

12. T-N curve (48V)

13. Maximum overload curve

Driver product Specifications

Main devices and specifications
